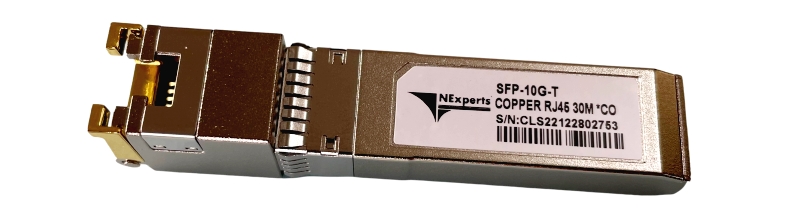

SFP-10G-T 10GBASE-T SFP+ (Copper, 30m, RJ-45) Module

CODE: SFP-10G-T

Price: 2.558.140 ₫

In stock

Quantity:

Add to wish list

Description
Reviews
Tags

10GBASE-T SFP+ Module (Copper, 30m, RJ-45)

Product Details

Form Type	SFP+	Data Rate	10Gbps
Cable Distance	30 meters	Power Consumption	2.5W
Interface	RJ-45	DOM Support	No
Commercial Temperature Range	0 to 70°C (32 to 158°F)	HTS-Harmonized Code	8517706000
Protocols	MSA Compliant

Q. What speeds are supported on the SFP+ 10GBASE-T?

A. The following three data rates are supported by the module: 100M/1G/10Gbps. If there are limitations on the platform host, a subset of speeds might be supported.

Q. What cables are supported? What is the distance/reach limitations?

A. The table below shows the reach and data rate by cable type.

Cisco PIDs	Speeds	Cable Type	Distance	Max. Power
SFP-10G-T-X	10Gbps	Cat6A/Cat7 or better	Up to 30 meters	2.5W
SFP-10G-T-X	100M/1Gbps	Cat5e/Cat6A/Cat7 or better	Up to 100 meters	1.0W

Q. What devices does the SFP-10G-T-X interoperate with on the other side of the link?

A. The SFP-10G-T-X interoperates with any device that supports 10GBASE-T, 1000BASE-T, or 100BASE-TX standards (such as IEEE 802.3an, 802.3ab, 802.3u). The SFP-10G-T-X interoperates with other BASE-T transceivers with (RJ-45 ports) as well as embedded BASE-T ports on servers and switches that comply to the IEEE standards described above.

Compatible:
